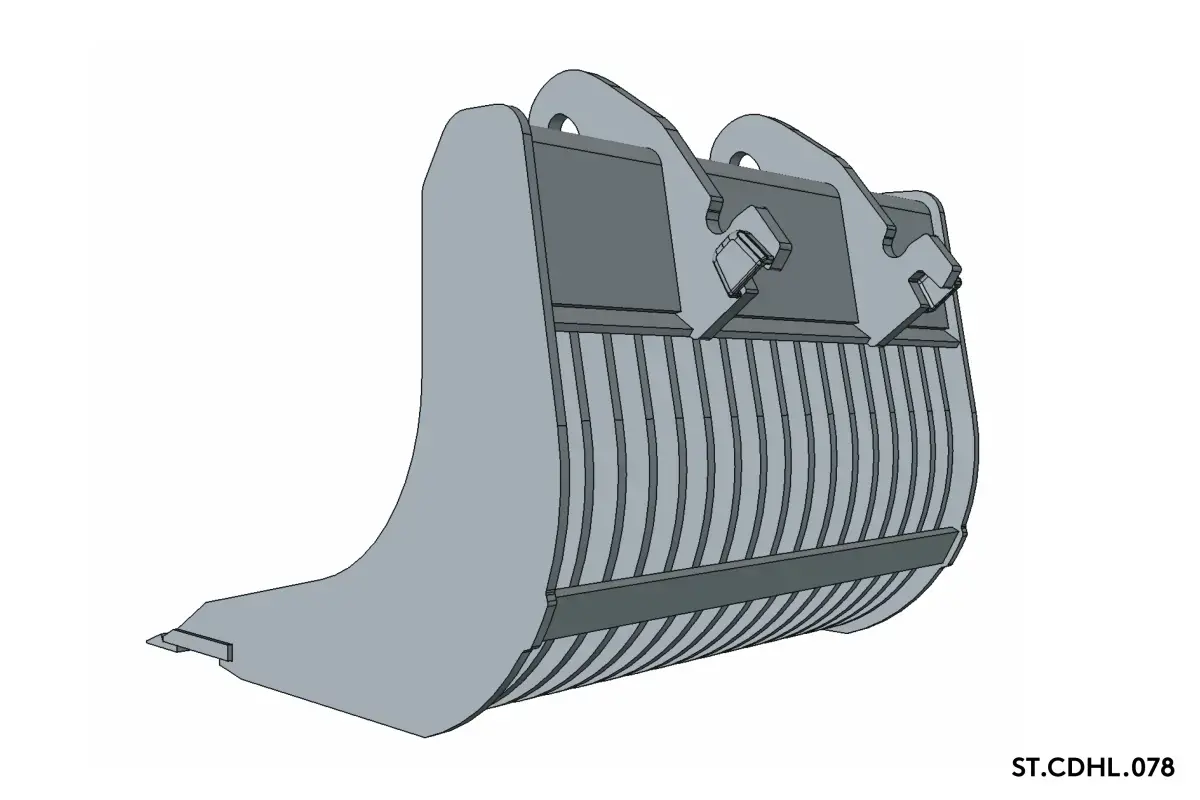

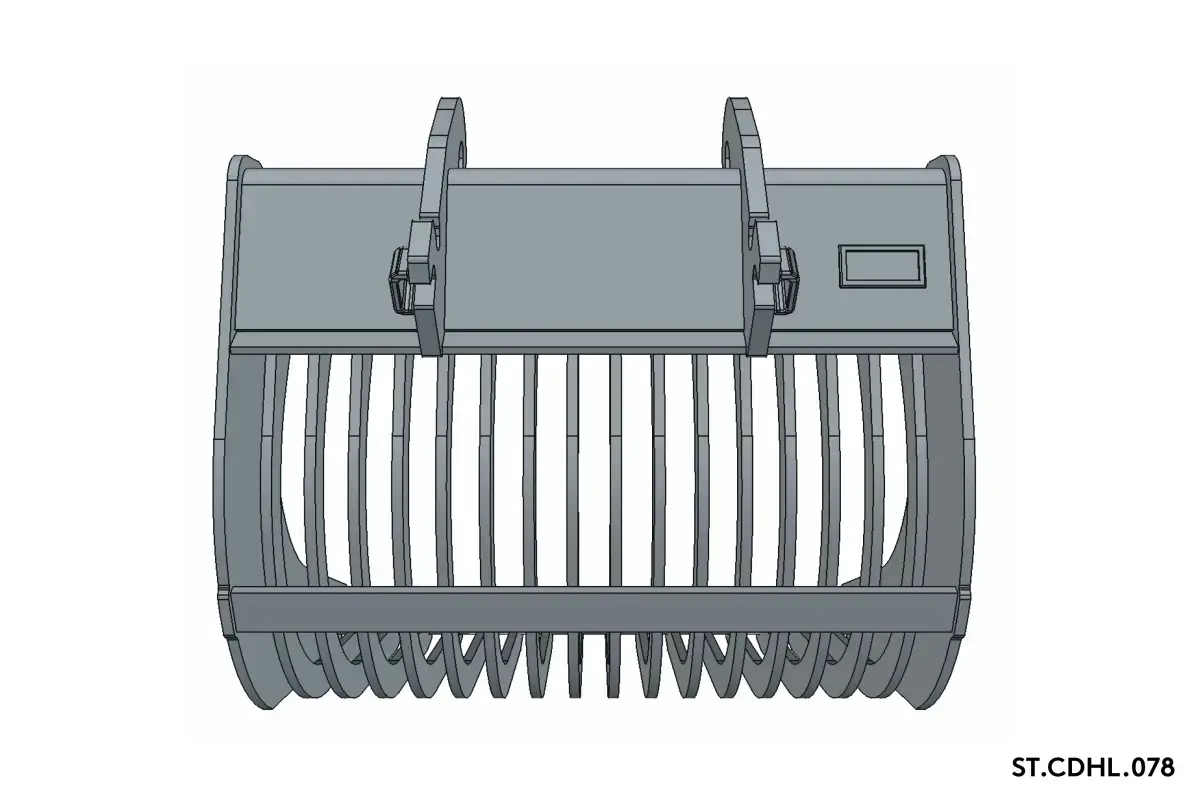

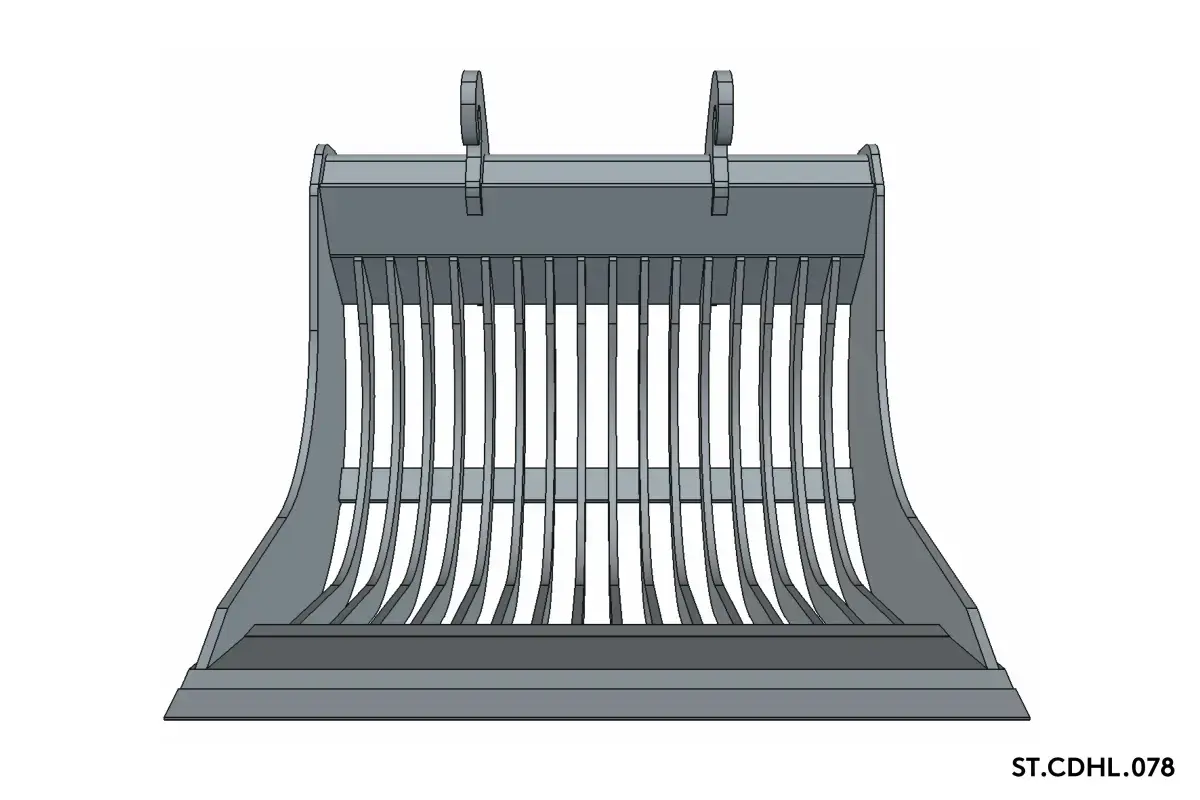

Skeleton bucket CW40-1.36-1380
ST.CDHL.078

Skeleton bucket CW40-1.36-1380

Excavator Attachments Skeleton buckets CW40

This Skeleton Bucket with an CW40 quick coupler connection, 1380 mm width and 1.36 m³ capacity is designed for 15 to 30 ton excavators and is ideal for screening, sorting and separating soil, rocks, demolition debris and recyclable materials. Its robust heavy duty construction is engineered to withstand demanding working conditions in earthmoving, recycling, quarrying and civil engineering projects. Built for maximum strength, durability and long service life, this skeleton bucket delivers reliable performance while maintaining excellent visibility and material separation efficiency.

Technical Specifications

Weight

878 kg

Width

1380 mm

Volume

1.36 m³

Machine Class

15-30 t

Cutting edge thickness (mm)

35 mm

Teeth

Toothless
